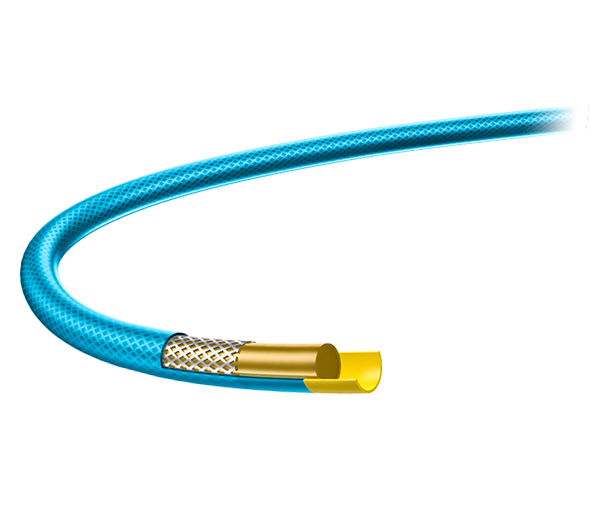

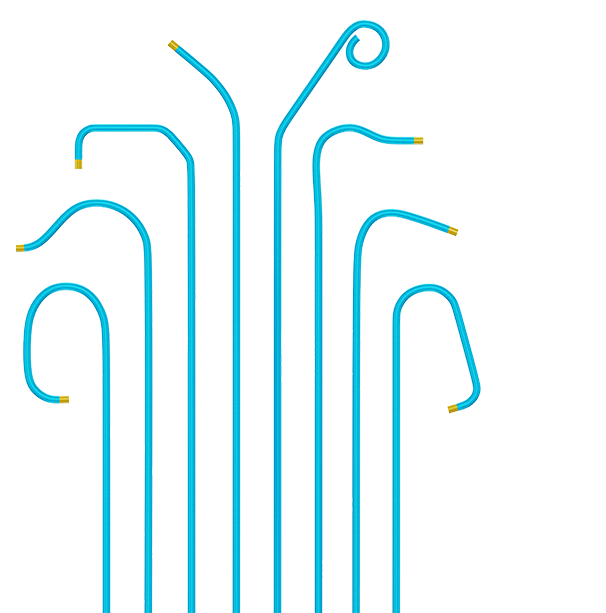

Angiopointer™ Hydrophilic Angiographic Catheter is designed for Coronary and Peripheral Angiography with excellent torqueability, lubricous performance and braided structure, multiple curves shapes for various procedures and anatomical structure, to fit your daily practice.
- Offers superior torque control and kink resistance
- Durable and lubricious performance for smooth advancement and reduced vessel trauma
- For easier super-selective angiography
- Keep the catheter advancement smoothy and contrast media injection stable: Only the distal part is coated
- Round and soft tip reduces the irritation on the vessel wall
| Curve | 4F | 5F | 6F | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 80cm | 100cm | 125cm | 80cm | 100cm | 125cm | 80cm | 100cm | 125cm | |
| 3DRC | - | 11410026 | - | - | 11510027 | - | - | 11610027 | - |
| AL I | - | 11410023 | - | - | 11510024 | - | - | 11610024 | - |
| AL II | - | 11410024 | - | - | 11510025 | - | - | 11610025 | - |
| AL III | - | 11410025 | - | - | 11510026 | - | - | 11610026 | - |
| AR MOD | - | 11410020 | - | - | 11510021 | - | - | 11610021 | - |
| AR MOD II | - | 11410022 | - | - | 11510023 | - | - | 11610023 | - |
| AR MOD I | - | 11410021 | - | - | 11510022 | - | - | 11610022 | - |
| COBRA1 | 11408027 | 7740100100 | 7740125102 | 11508028 | 7750100100 | 7750125102 | 11608028 | 7760100100 | 7760125102 |
| COBRA2 | 11408028 | 7740100108 | 7740125110 | 11508029 | 7750100108 | 7750125110 | 11608029 | 7760100108 | 7760125110 |
| COBRA3 | 11408029 | 7740100116 | 7740125118 | 11508030 | 7750100116 | 7750125118 | 11608030 | 7760100116 | 7760125118 |
| HEADHUNTER1 | - | 11410033 | - | - | 11510034 | - | 11608034 | 7760100134 | - |
| HEADHUNTER2 | - | 11410034 | - | - | 11510035 | - | 11608035 | 7760100136 | - |
| HEADHUNTER3 | - | 11410035 | - | - | 11510036 | - | 11608036 | 7760100137 | - |
| HEADHUNTER5 | - | 11410036 | - | - | 11510037 | - | 11608037 | 7760100138 | - |
| HEADHUNTER6 | - | 11410037 | - | - | 11510038 | - | 11608038 | 7760100139 | - |
| MPA | - | 11410018 | 7740125053 | - | 11510019 | 7750125053 | - | 11610019 | 7760125053 |
| MPB | - | 7740100059 | 7740125061 | - | 7750100059 | 7750125061 | - | 7760100059 | 7760125061 |
| RH | 11408038 | - | - | 11508039 | - | - | 11608039 | - | - |
| RLG | - | 7740100152 | - | - | 7750100152 | - | - | 7760100152 | - |
| RS | 7740080153 | - | - | 7750080153 | - | - | 7760080153 | - | - |
| SIM1 | 11408030 | 7740100090 | - | 11508031 | 7750100090 | - | 11608031 | 7760100090 | - |
| SIM2 | 11408031 | 7740100092 | - | 11508032 | 7750100092 | - | 11608032 | 7760100092 | - |
| SIM3 | 11408032 | 7740100094 | - | 11508033 | 7750100094 | - | 11608033 | 7760100094 | - |
| TIG | - | 11410010 | - | - | 11510010 | - | - | 11610010 | - |
| Vertebral | - | 7740100044 | - | - | 7750100044 | - | - | 7760100044 | - |
| VTK | - | 7740100140 | 7740125141 | - | 7750100140 | 7750125141 | - | 7760100140 | 7760125141 |
| IM | - | 7740100150 | - | - | 7750100150 | - | - | 7760100150 | - |
| Curve | 4F | 5F | 6F | ||||||
| 70cm | 100cm | 130cm | 70cm | 100cm | 130cm | 70cm | 100cm | 130cm | |
| JL3.5 | - | 11410005 | 7740130156 | - | 11510005 | 7750130156 | - | 11610005 | 7760130156 |
| JL4 | - | 11410006 | 7740130159 | - | 11510006 | 7750130159 | - | 11610006 | 7760130159 |
| JL4.5 | - | 11410008 | 7740130162 | - | 11510008 | 7750130162 | - | 11610008 | 7760130162 |
| JL5 | - | 11410009 | 7740130165 | - | 11510009 | 7750130165 | - | 11610009 | 7760130165 |
| JL6 | - | 7740100166 | 7740130168 | - | 7750100166 | 7750130168 | - | 7760100166 | 7760130168 |
| JR3.5 | - | 11410001 | 7740130171 | - | 11510001 | 7750130171 | - | 11610001 | 7760130171 |
| JR4 | - | 11410002 | 11413003 | - | 11510002 | 11513003 | - | 11610002 | 11613003 |
| JR5 | - | 11410004 | 7740130177 | - | 11510004 | 7750130177 | - | 11610004 | 7760130177 |
| JR6 | - | 7740100178 | 7740130180 | - | 7750100178 | 7750130180 | - | 7760100178 | 7760130180 |
| Yashiro | 7740070148 | - | - | 7750070148 | - | - | 7760070148 | - | - |
| Curve | 4F | 5F | 6F | ||||||
| 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | |
| Straight | 7740080004 | 11410039 | 7740120010 | 7750080004 | 7750100006 | 7750120010 | 7760080004 | 7760100006 | 7760120010 |
| Curve | 4F | 5F | 6F | Side holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100cm | 110cm | 130cm | 100cm | 110cm | 130cm | 100cm | 110cm | 130cm | |||||
| TIG | 11410040 | 11411011 | - | 11510040 | 11511011 | - | 11610040 | 11611011 | - | 1 | |||
| PIG | - | 11411012 | 11413013 | - | 11511012 | 11513013 | - | 11611012 | 11613013 | 6 | |||
| PIG-145° | - | 11411015 | 11413016 | - | 11511015 | 11513016 | - | 11611015 | 11613016 | 6 | |||
| PIG-155° | - | 11411017 | 7740130037 | - | 11511017 | 7750130037 | - | 11611017 | 7760130037 | 6 | |||
| PIG | - | 7740110021 | 11413014 | - | 11511014 | 7750130022 | - | 11611014 | 7760130022 | 8 | |||
| PIG-145° | - | 7740110031 | 7740130032 | - | 11511018 | 7750130032 | - | 11611018 | 7760130032 | 8 | |||
| PIG-155° | - | 7740110041 | 7740130042 | - | 7750110041 | 7750130042 | - | 7760110041 | 7760130042 | 8 | |||
| Curve | 4F | 5F | 6F | Side holes | |||||||||
| 100cm | 125cm | 100cm | 125cm | 100cm | 125cm | ||||||||
| MPA | 7740100050 | 7740125052 | 7750100050 | 7750125052 | 7760100050 | 7760125052 | 2 | ||||||
| MPA2 | 11410019 | - | 11510020 | - | 11610020 | - | 2 | ||||||
| MPB | 7740100058 | 7740125060 | 7750100058 | 7750125060 | 7760100058 | 7760125060 | 2 | ||||||
| Curve | 4F | 5F | 6F | Side holes | |||||||||
| 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | |||||
| Straight | 7740080003 | 7740100005 | 7740120009 | 7750080003 | 7750100005 | 7750120009 | 7760080003 | 7760100005 | 7760120009 | 6 | |||
