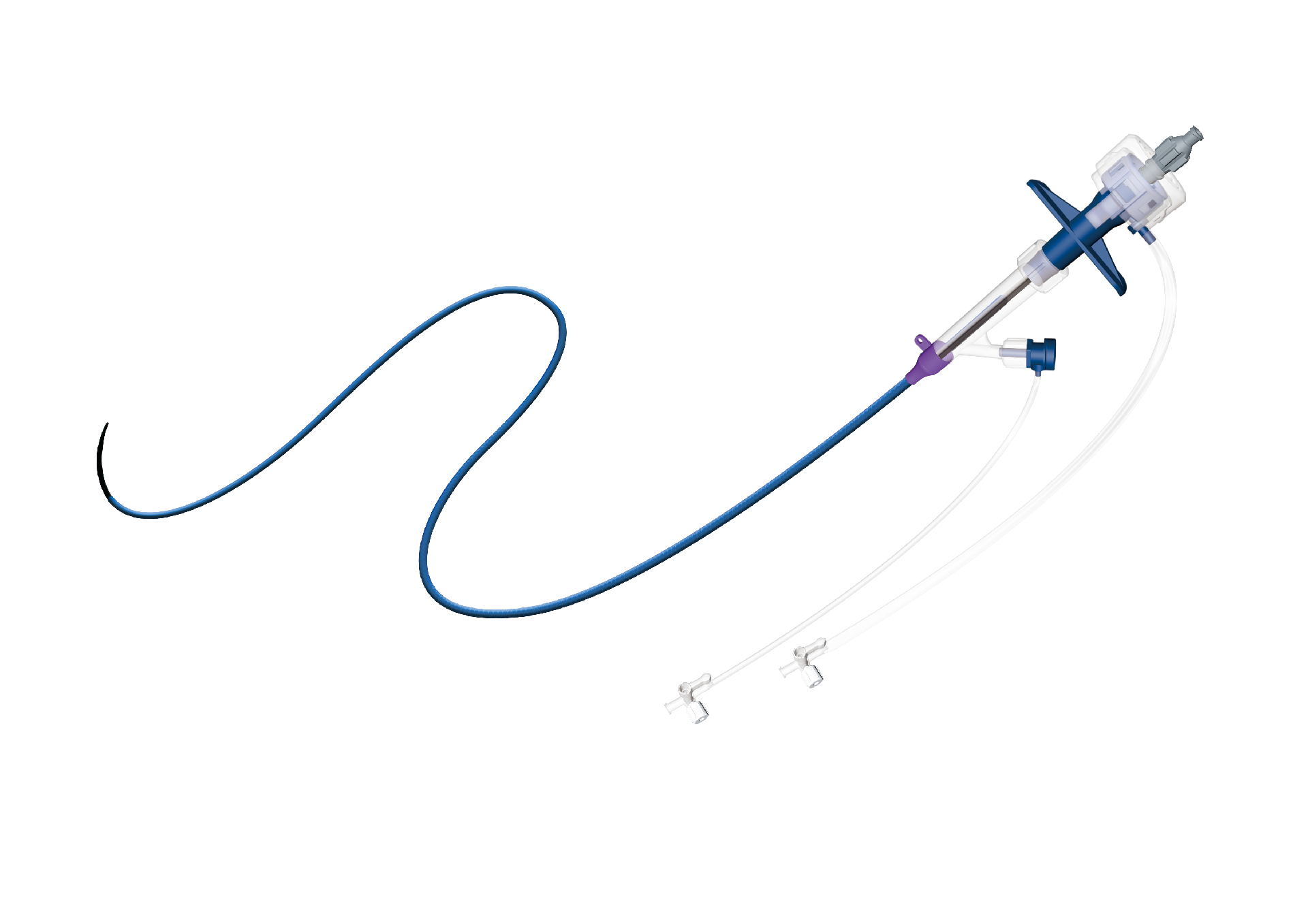

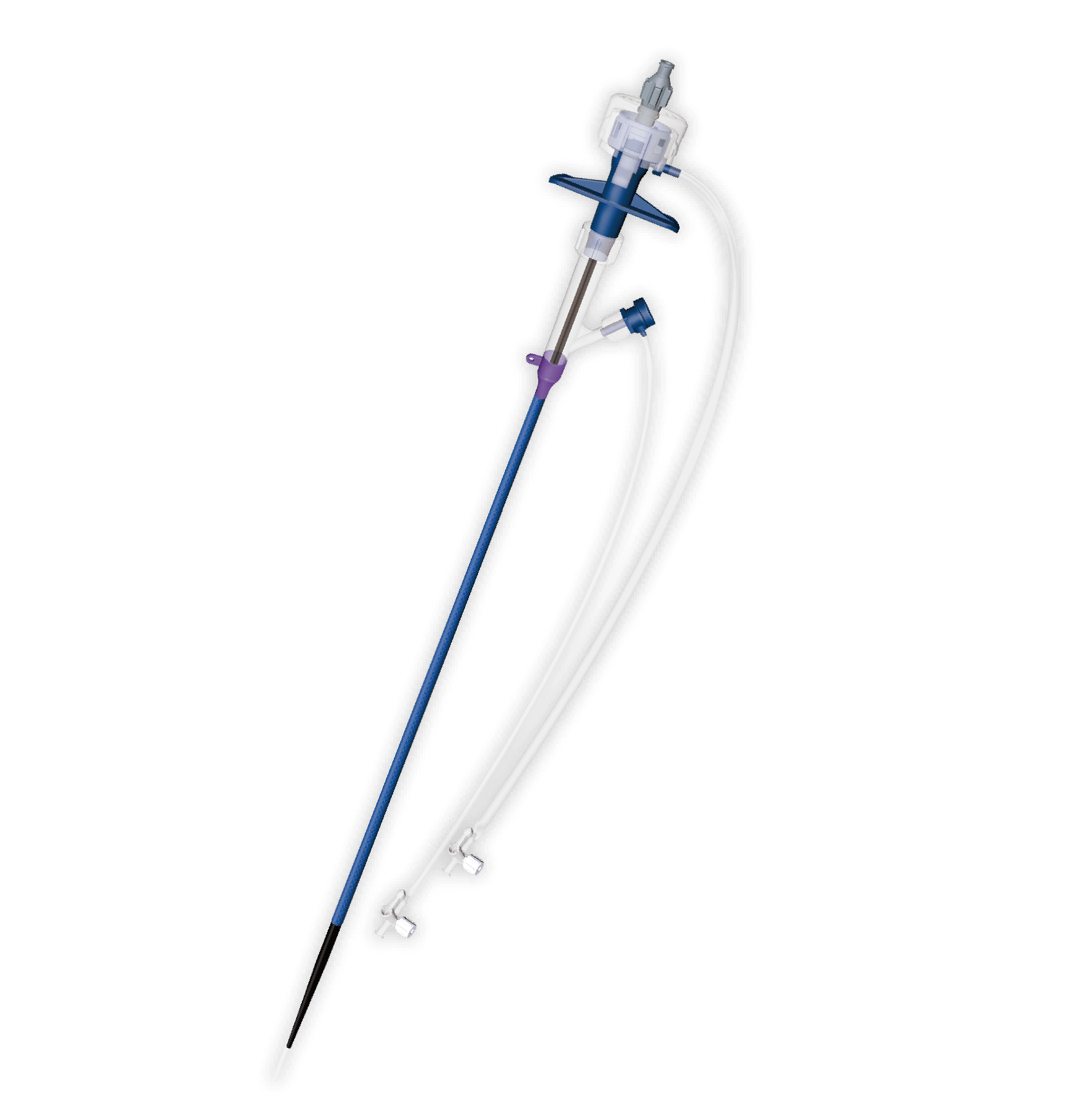

Featuring an innovative adjustable valve design, the Braidin™ Duo Introducer Sheath delivers unmatched versatility for a wide range of minimally invasive procedures, especially in aortic intervention and treatment of structural heart disease.
- With just a simple push and press, the introducer sheath seamlessly transitions to different status to accommodate medical devices of various sizes with precision.
- Enabling simultaneous delivery of two guiding sheaths or catheters through separate lumens while maintaining proven hemostatic performance, even in challenging cases.
- Reduce resistance and vessel trauma during puncture
- Ensure frictionless advancement in challenging vessels
- Reliable support and kink resistance
- Excellent retention ability of the inner lumen
- Smooth delivery system navigation even in calcified and tortuous vessel
| Size | I.D. (mm) | O.D. (mm) | Wall Thickness (mm) | Straight | 45° | 90° | 180° | 270° | Single Curve | Double Curve | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15cm | 25cm | 30cm | 35cm | 50cm | 60cm | 70cm | 80cm | 85cm | 60cm | 70cm | 60cm | 85cm | 60cm | 60cm | ||||
| 10F | 3.52 | 4.14 | 0.62 | 192100150 | 192100250 | 192100300 | 192100350 | 192100500 | 192100600 | 192100700 | 192100800 | 192100851 | 192100602 | 192100702 | 192100603 | 192100854 | - | - |
| 11F | 3.83 | 4.45 | 0.62 | 192110150 | 192110250 | 192110300 | 192110350 | 192110500 | 192110600 | 192110700 | 192110800 | - | - | - | - | - | - | - |
| 12F | 4.16 | 4.78 | 0.62 | 192120150 | 192120250 | 192120300 | 192120350 | 192120500 | 192120600 | 192120700 | 192120800 | 192120851 | 192120602 | 192120702 | 192120603 | 192120854 | 192120605 | 192120606 |
| 13F | 4.52 | 5.14 | 0.62 | 192130150 | 192130250 | 192130300 | 192130350 | 192130500 | 192130600 | 192130700 | 192130800 | - | - | - | - | - | - | - |
| 14F | 4.83 | 5.45 | 0.62 | 192140150 | 192140250 | 192140300 | 192140350 | 192140500 | 192140600 | 192140700 | 192140800 | 192140851 | 192140602 | 192140702 | 192140603 | 192140854 | 192140605 | 192140606 |
| 15F | 5.17 | 5.79 | 0.62 | 192150150 | 192150250 | 192150300 | 192150350 | 192150500 | 192150600 | 192150700 | 192150800 | - | - | - | - | - | - | - |
| 16F | 5.51 | 6.13 | 0.62 | 192160150 | 192160250 | 192160300 | 192160350 | 192160500 | 192160600 | 192160700 | 192160800 | 192160851 | 192160602 | 192160702 | 192160603 | 192160854 | - | - |
| 17F | 5.83 | 6.45 | 0.62 | 192170150 | 192170250 | 192170300 | 192170350 | 192170500 | 192170600 | 192170700 | 192170800 | - | - | - | - | - | - | - |
| 18F | 6.17 | 6.79 | 0.62 | 192180150 | 192180250 | 192180300 | 192180350 | 192180500 | 192180600 | 192180700 | 192180800 | 192180851 | 192180602 | 192180702 | 192180603 | 192180854 | - | - |
| 19F | 6.51 | 7.13 | 0.62 | 192190150 | 192190250 | 192190300 | 192190350 | 192190500 | 192190600 | 192190700 | 192190800 | - | - | - | - | - | - | - |
| 20F | 6.83 | 7.45 | 0.62 | 192200150 | 192200250 | 192200300 | 192200350 | 192200500 | 192200600 | 192200700 | 192200800 | - | 192200602 | 192200702 | - | - | - | - |
| 21F | 7.17 | 7.9 | 0.73 | 192210150 | 192210250 | 192210300 | 192210350 | 192210500 | 192210600 | 192210700 | 192210800 | - | - | - | - | - | - | - |
| 22F | 7.51 | 8.24 | 0.73 | 192220150 | 192220250 | 192220300 | 192220350 | 192220500 | 192220600 | 192220700 | 192220800 | - | 192220602 | 192220702 | - | - | - | - |
| 23F | 7.83 | 8.56 | 0.73 | 192230150 | 192230250 | 192230300 | 192230350 | 192230500 | 192230600 | 192230700 | 192230800 | - | - | - | - | - | - | - |
| 24F | 8.16 | 8.89 | 0.73 | 192240150 | 192240250 | 192240300 | 192240350 | 192240500 | 192240600 | 192240700 | 192240800 | - | 192240602 | 192240702 | - | - | - | - |
| 25F | 8.51 | 9.24 | 0.73 | 192250150 | 192250250 | 192250300 | 192250350 | 192250500 | 192250600 | 192250700 | 192250800 | - | - | - | - | - | - | - |
| 26F | 8.83 | 9.56 | 0.73 | 192260150 | 192260250 | 192260300 | 192260350 | 192260500 | 192260600 | 192260700 | 192260800 | - | - | - | - | - | - | - |
| 28F | 9.5 | 10.35 | 0.85 | 192280150 | 192280250 | 192280300 | 192280350 | 192280500 | 192280600 | 192280700 | 192280800 | - | - | - | - | - | - | - |
| 30F | 10.17 | 11.02 | 0.85 | 192300150 | 192300250 | 192300300 | 192300350 | 192300500 | 192300600 | 192300700 | 192300800 | - | - | - | - | - | - | - |
