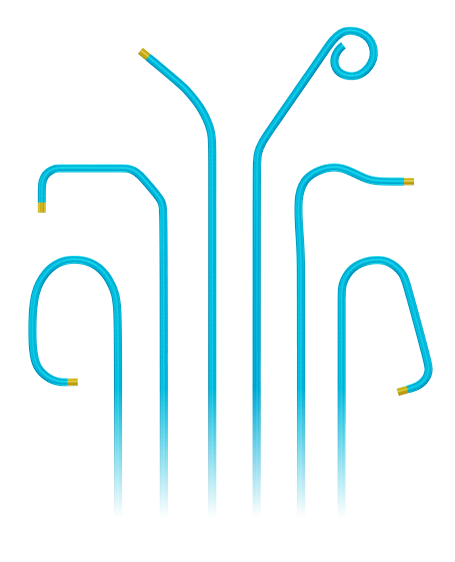

Angiopointer™ Hydrophilic Angiographic Catheter is designed for Coronary and Peripheral Angiography with excellent torqueability, lubricous performance and braided design for large inner lumen and high flow rate, multiple curve shapes for various procedures and anatomical structure, to fit your daily practice.
- Offers superior torque control
- Balances flexibility and kink resistance
- Provides large lumen for higher flow rate
- Durable and lubricous performance for smooth advancement and reduce vessel trauma
- For easier super-selective angiography
- Keep the catheter advancement smoothly and contrast media injection stable: Distal part and proximal part are uncoated
- Round and soft tip reduces the irritation on vessel wall
- Ensures good visualization under fluoroscopy
| Curve | 4F | 5F | 6F | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 80cm | 100cm | 125cm | 80cm | 100cm | 125cm | 80cm | 100cm | 125cm | |
| 3DRC | - | 11410026 | - | - | 11510027 | - | - | 11610027 | - |
| AL I | - | 11410023 | - | - | 11510024 | - | - | 11610024 | - |
| AL II | - | 11410024 | - | - | 11510025 | - | - | 11610025 | - |
| AL III | - | 11410025 | - | - | 11510026 | - | - | 11610026 | - |
| AR MOD | - | 11410020 | - | - | 11510021 | - | - | 11610021 | - |
| AR MOD II | - | 11410022 | - | - | 11510023 | - | - | 11610023 | - |
| AR MOD I | - | 11410021 | - | - | 11510022 | - | - | 11610022 | - |
| COBRA1 | 11408027 | 7740100100 | 7740125102 | 11508028 | 7750100100 | 7750125102 | 11608028 | 7760100100 | 7760125102 |
| COBRA2 | 11408028 | 7740100108 | 7740125110 | 11508029 | 7750100108 | 7750125110 | 11608029 | 7760100108 | 7760125110 |
| COBRA3 | 11408029 | 7740100116 | 7740125118 | 11508030 | 7750100116 | 7750125118 | 11608030 | 7760100116 | 7760125118 |
| HEADHUNTER1 | - | 11410033 | - | - | 11510034 | - | 11608034 | 7760100134 | - |
| HEADHUNTER2 | - | 11410034 | - | - | 11510035 | - | 11608035 | 7760100136 | - |
| HEADHUNTER3 | - | 11410035 | - | - | 11510036 | - | 11608036 | 7760100137 | - |
| HEADHUNTER5 | - | 11410036 | - | - | 11510037 | - | 11608037 | 7760100138 | - |
| HEADHUNTER6 | - | 11410037 | - | - | 11510038 | - | 11608038 | 7760100139 | - |
| MPA | - | 11410018 | 7740125053 | - | 11510019 | 7750125053 | - | 11610019 | 7760125053 |
| MPB | - | 7740100059 | 7740125061 | - | 7750100059 | 7750125061 | - | 7760100059 | 7760125061 |
| RH | 11408038 | - | - | 11508039 | - | - | 11608039 | - | - |
| RLG | - | 7740100152 | - | - | 7750100152 | - | - | 7760100152 | - |
| RS | 7740080153 | - | - | 7750080153 | - | - | 7760080153 | - | - |
| SIM1 | 11408030 | 7740100090 | - | 11508031 | 7750100090 | - | 11608031 | 7760100090 | - |
| SIM2 | 11408031 | 7740100092 | - | 11508032 | 7750100092 | - | 11608032 | 7760100092 | - |
| SIM3 | 11408032 | 7740100094 | - | 11508033 | 7750100094 | - | 11608033 | 7760100094 | - |
| TIG | - | 11410010 | - | - | 11510010 | - | - | 11610010 | - |
| Vertebral | - | 7740100044 | - | - | 7750100044 | - | - | 7760100044 | - |
| VTK | - | 7740100140 | 7740125141 | - | 7750100140 | 7750125141 | - | 7760100140 | 7760125141 |
| IM | - | 7740100150 | - | - | 7750100150 | - | - | 7760100150 | - |
| Curve | 4F | 5F | 6F | ||||||
| 70cm | 100cm | 130cm | 70cm | 100cm | 130cm | 70cm | 100cm | 130cm | |
| JL3.5 | - | 11410005 | 7740130156 | - | 11510005 | 7750130156 | - | 11610005 | 7760130156 |
| JL4 | - | 11410006 | 7740130159 | - | 11510006 | 7750130159 | - | 11610006 | 7760130159 |
| JL4.5 | - | 11410008 | 7740130162 | - | 11510008 | 7750130162 | - | 11610008 | 7760130162 |
| JL5 | - | 11410009 | 7740130165 | - | 11510009 | 7750130165 | - | 11610009 | 7760130165 |
| JL6 | - | 7740100166 | 7740130168 | - | 7750100166 | 7750130168 | - | 7760100166 | 7760130168 |
| JR3.5 | - | 11410001 | 7740130171 | - | 11510001 | 7750130171 | - | 11610001 | 7760130171 |
| JR4 | - | 11410002 | 11413003 | - | 11510002 | 11513003 | - | 11610002 | 11613003 |
| JR5 | - | 11410004 | 7740130177 | - | 11510004 | 7750130177 | - | 11610004 | 7760130177 |
| JR6 | - | 7740100178 | 7740130180 | - | 7750100178 | 7750130180 | - | 7760100178 | 7760130180 |
| Yashiro | 7740070148 | - | - | 7750070148 | - | - | 7760070148 | - | - |
| Curve | 4F | 5F | 6F | ||||||
| 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | |
| Straight | 7740080004 | 11410039 | 7740120010 | 7750080004 | 7750100006 | 7750120010 | 7760080004 | 7760100006 | 7760120010 |
| Curve | 4F | 5F | 6F | Side holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100cm | 110cm | 130cm | 100cm | 110cm | 130cm | 100cm | 110cm | 130cm | |||||
| TIG | 11410040 | 11411011 | - | 11510040 | 11511011 | - | 11610040 | 11611011 | - | 1 | |||
| PIG | - | 11411012 | 11413013 | - | 11511012 | 11513013 | - | 11611012 | 11613013 | 6 | |||
| PIG-145° | - | 11411015 | 11413016 | - | 11511015 | 11513016 | - | 11611015 | 11613016 | 6 | |||
| PIG-155° | - | 11411017 | 7740130037 | - | 11511017 | 7750130037 | - | 11611017 | 7760130037 | 6 | |||
| PIG | - | 7740110021 | 11413014 | - | 11511014 | 7750130022 | - | 11611014 | 7760130022 | 8 | |||
| PIG-145° | - | 7740110031 | 7740130032 | - | 11511018 | 7750130032 | - | 11611018 | 7760130032 | 8 | |||
| PIG-155° | - | 7740110041 | 7740130042 | - | 7750110041 | 7750130042 | - | 7760110041 | 7760130042 | 8 | |||
| Curve | 4F | 5F | 6F | Side holes | |||||||||
| 100cm | 125cm | 100cm | 125cm | 100cm | 125cm | ||||||||
| MPA | 7740100050 | 7740125052 | 7750100050 | 7750125052 | 7760100050 | 7760125052 | 2 | ||||||
| MPA2 | 11410019 | - | 11510020 | - | 11610020 | - | 2 | ||||||
| MPB | 7740100058 | 7740125060 | 7750100058 | 7750125060 | 7760100058 | 7760125060 | 2 | ||||||
| Curve | 4F | 5F | 6F | Side holes | |||||||||
| 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | 80cm | 100cm | 120cm | |||||
| Straight | 7740080003 | 7740100005 | 7740120009 | 7750080003 | 7750100005 | 7750120009 | 7760080003 | 7760100005 | 7760120009 | 6 | |||
