The Flexibility You Can Control

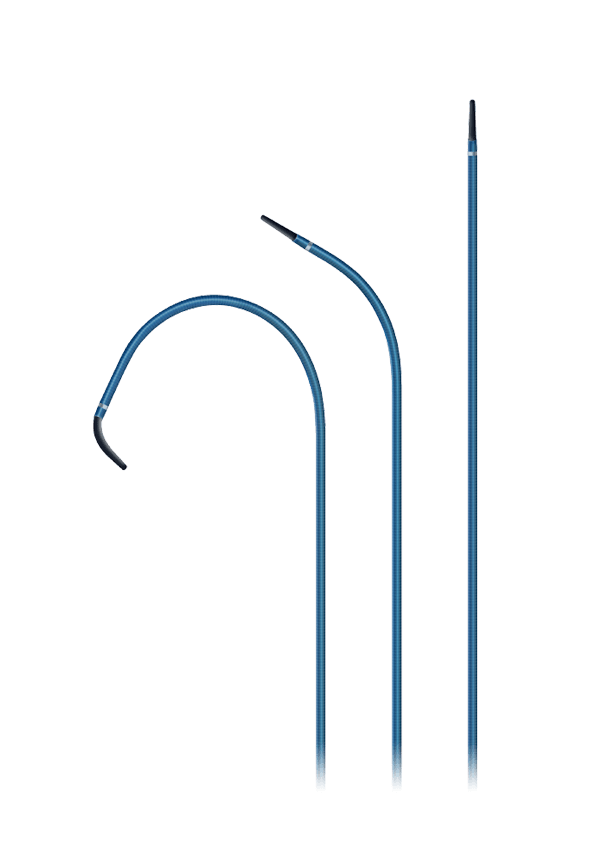

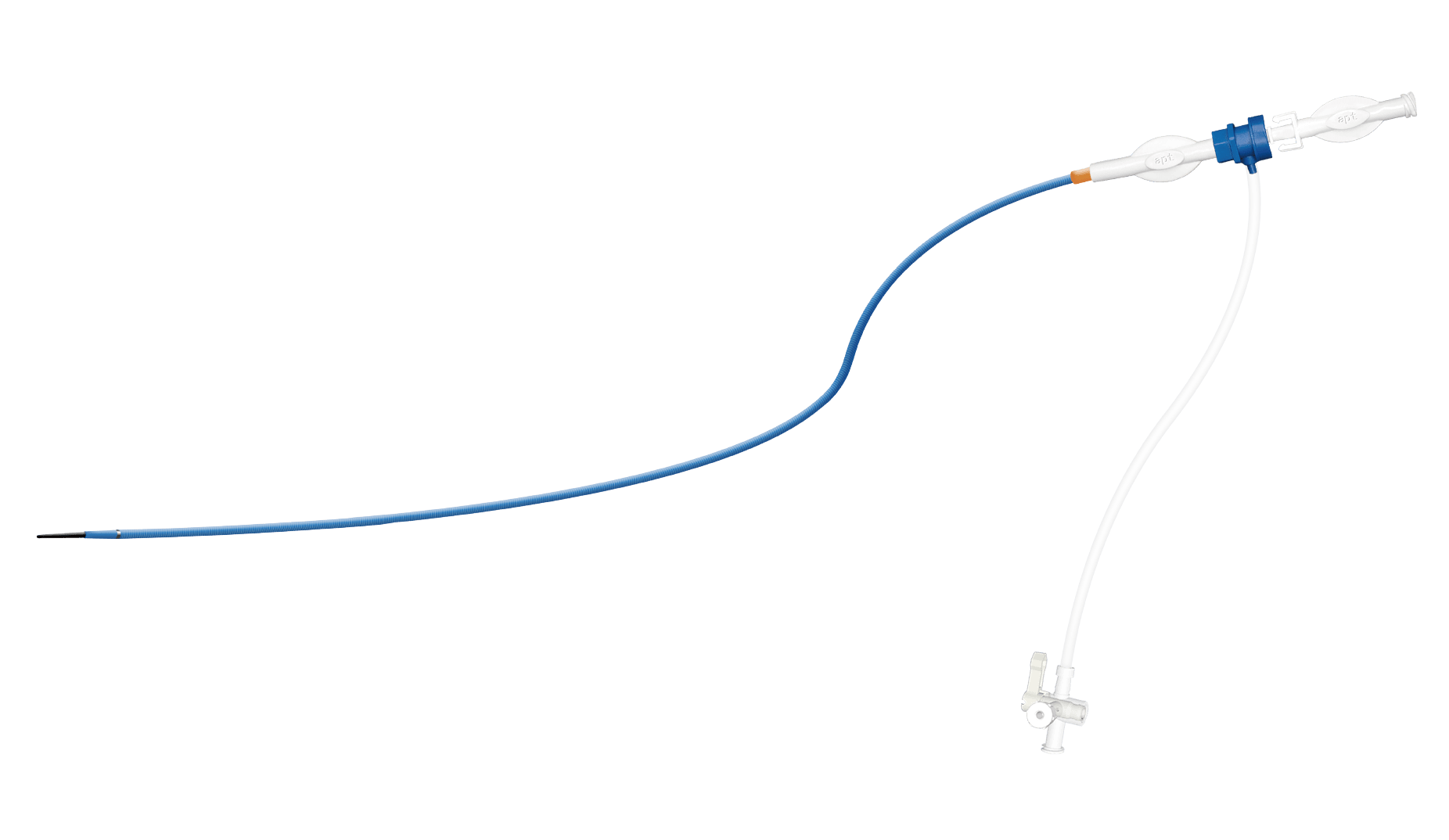

Sailwire™ Guiding Sheath

Sailwire™

Guiding Sheath

Sailwire™ Guiding Sheath with stainless steel coiled structure brings both flexibility and support at the same time, multiple configurations are available to meet different clinical needs, which extremely simplifies PAD interventions.

Features

Superior Kink Resistance

- Stainless steel coil reinforced construction offers optimal support, kink resistance and flexibility

Enhanced Visibility

- Highly visible sheath and radiopaque band for easy and precise positioning

Durable and Lubricious Performance

- Patented coating on the distal ensures long-lasting lubricity and smooth advancing

Efficient Delivery

- Removable hemostatic valve to deliver devices easily during procedure, minimizing device exchanges

Smooth and Easy Insertion

- Smooth transitions between guidewire, dilator, and sheath reduce friction and vessel damage

Comprehensive specification

- Size: 4-12 Fr; Length: 30-110 cm; Curves: 10 options



* The product is not available in all countries, please contact us for more details.



Product Codes

Curve Straight
Length (cm) 30 40 45 50 55 60 65 70 80 90 100 110
4F 830403001 830404001 830404501 830405001 830405501 830406001 830406501 830407001 830408001 830409001 830410001 830411001
5F 830503001 830504001 830504501 830505001 830505501 830506001 830506501 830507001 830508001 830509001 830510001 830511001
6F 830603001 830604001 830604501 830605001 830605501 830606001 830606501 830607001 830608001 830609001 830610001 830611001
7F 830703001 830704001 830704501 830705001 830705501 830706001 830706501 830707001 830708001 830709001 830710001 830711001
8F 830803001 830804001 830804501 830805001 830805501 830806001 830806501 830807001 830808001 830809001 830810001 830811001
9F 830903001 830904001 830904501 830905001 830905501 830906001 830906501 830907001 830908001 830909001 830910001 830911001
10F 831003001 831004001 831004501 831005001 831005501 831006001 831006501 831007001 831008001 831009001 831010001 831011001
12F 831203001 831204001 831204501 831205001 831205501 831206001 831206501 831207001 831208001 831209001 831210001 831211001

4F with 0.035” J hydrophilic guidewire, the rest with 0.038” J hydrophilic guidewire
70cm and below with 150cm guidewire; 80cm and above with 180cm guidewire

Curve ANL1 ANL2 ANL3 BALKIN MultiPurpose
Length (cm) 45 55 90** 45 55 45 40 45 90
5F 830504561 - 830509061 830504571 - - 830504051 830504521 830509021
6F 830604561 830605561 830609061 830604571 830605571 830604581 830604051 830604521 830609021
7F 830704561 830705561 - 830704571 830705571 - 830704051 830704521 830709021
8F 830804561 - - - - - 830804051 - -
9F 830904561 - - - - - - - -
10F 831004561 - - - - - - - -
12F 831204561 - - - - - - - -

All equipped with 0.038” J hydrophilic guidewire
70cm and below with 150cm guidewire; 80cm and above with 180cm guidewire
ANL1 curve 90** cm with 150cm guidewire

Curve Hockey Stick RDC LIMA SHTL
Length (cm) 45 45 45 80 90 110 6F 90cm (with selective catheter)
4F - - - - 830409091 830411091 83060909A H1 Selective Catheter
5F 830504511 830504531 830504541 - 830509091 830511091 83060909B JB1 Selective Catheter
6F 830604511 830604531 830604541 830608091 830609091 - 83060909C VTK Selective Catheter
7F 830704511 830704531 830704541 830708091 830709091 - 83060909D SIM2 Selective Catheter
8F - - - - 830809091 - 83060909E JB2 Selective Catheter

4F with 0.035” J hydrophilic guidewire, the rest with 0.038” J hydrophilic guidewire
70cm and below with 150cm guidewire; 80cm and above with 180cm guidewire

Curve Straight
Length (cm) 30 40 45 50 55 60 65 70 80 90 100 110
4F 830403002 830404002 830404502 830405002 830405502 830406002 830406502 830407002 830408002 830409002 830410002 830411002
5F 830503002 830504002 830504502 830505002 830505502 830506002 830506502 830507002 830508002 830509002 830510002 830511002
6F 830603002 830604002 830604502 830605002 830605502 830606002 830606502 830607002 830608002 830609002 830610002 830611002
7F 830703002 830704002 830704502 830705002 830705502 830706002 830706502 830707002 830708002 830709002 830710002 830711002
8F 830803002 830804002 830804502 830805002 830805502 830806002 830806502 830807002 830808002 830809002 830810002 830811002
9F 830903002 830904002 830904502 830905002 830905502 830906002 830906502 830907002 830908002 830909002 830910002 830911002
10F 831003002 831004002 831004502 831005002 831005502 831006002 831006502 831007002 831008002 831009002 831010002 831011002
12F 831203002 831204002 831204502 831205002 831205502 831206002 831206502 831207002 831208002 831209002 831210002 831211002
Curve ANL1 ANL2 ANL3 BALKIN MultiPurpose
Length (cm) 45 55 90 45 55 45 40 45 90
5F 830504562 - 830509062 830504572 - - 830504052 830504522 830509022
6F 830604562 830605562 830609062 830604572 830605572 830604582 830604052 830604522 830609022
7F 830704562 830705562 - 830704572 830705572 - 830704052 830704522 830709022
8F 830804562 - - - - - 830804052 - -
9F 830904562 - - - - - - - -
10F 831004562 - - - - - - - -
12F 831204562 - - - - - - - -
Curve Hockey Stick RDC LIMA SHTL
Length(cm) 45 45 45 80 90 110 6F 90cm (with selective catheter)
4F - - - - 830409092 830411092 83060909F H1 Selective Catheter
5F 830504512 830504532 830504542 - 830509092 830511092 83060909G JB1 Selective Catheter
6F 830604512 830604532 830604542 830608092 830609092 - 83060909H VTK Selective Catheter
7F 830704512 830704532 830704542 830708092 830709092 - 83060909I SIM2 Selective Catheter
8F - - - - 830809092 - 83060909J JB2 Selective Catheter

Without guidewire

Enlarge table
Enlarge table

PRODUCT CODES
