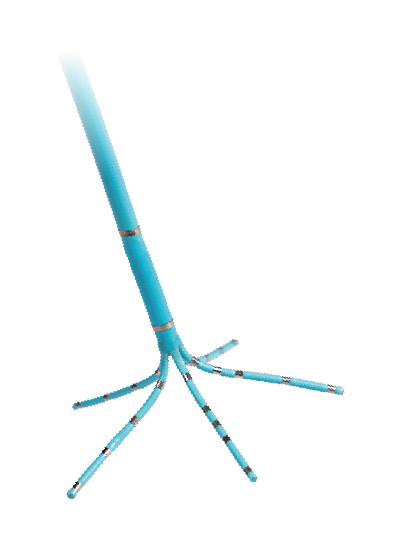

High-Density Data Meets True Anatomy.
*CE in progress
- Soft Contact with Myocardium
- Enhanced Maxium Mapping Area of 8cm²
- Models with Varied Elecrodes Numbers/Spacings for Customized Mapping

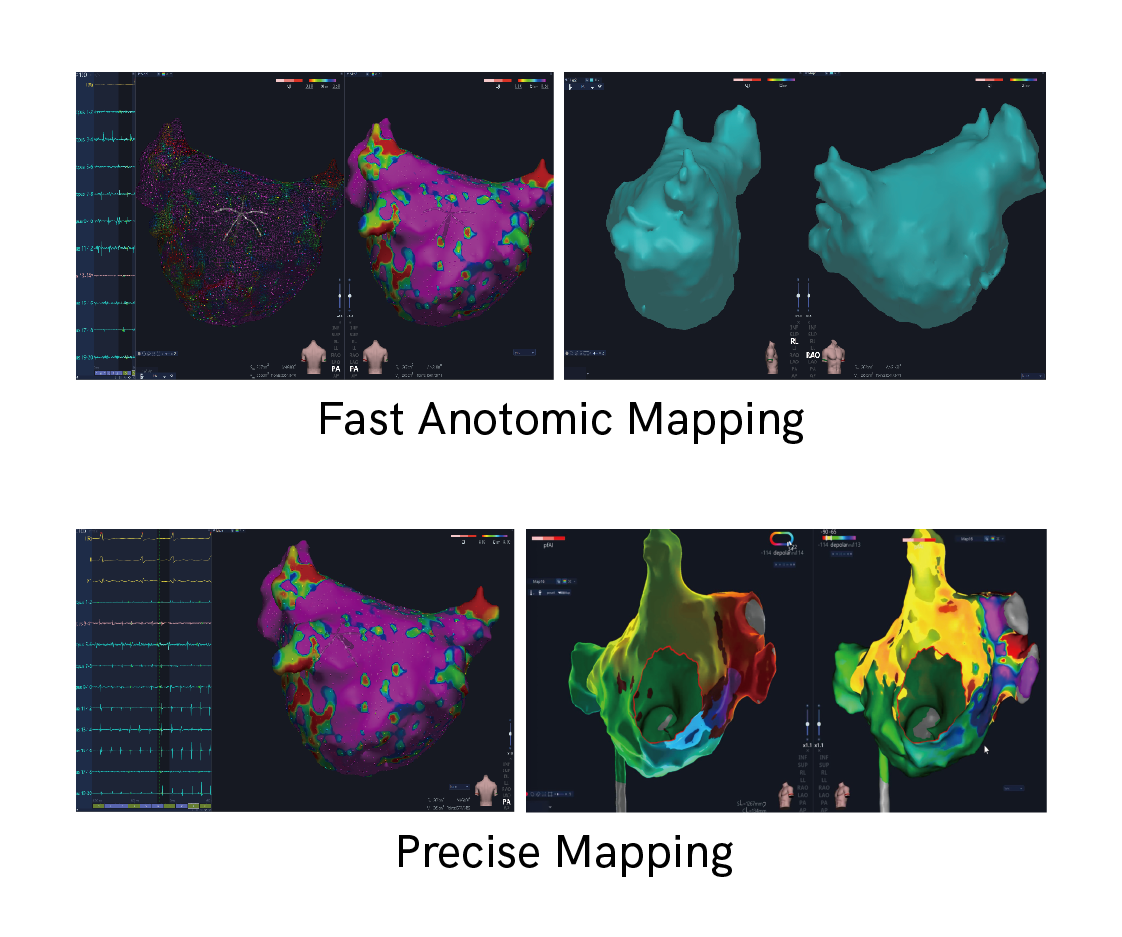

- Unparallel 3D Mapping Experiences of Atrial Arrhythmias on HT Viewer Mapping System
| REF | Electrode Number | Catheter Diameter | Length (mm) | Electrode Spacing | Branch Diameter | Curve Shape |
|---|---|---|---|---|---|---|
| 806701 | 22 | 7F | 1100 | 2-5-2 | 10 | D |
| 806702 | 22 | 7F | 1100 | 3-3-3 | 10 | D |
| 806703 | 22 | 7F | 1100 | 2-6-2 | 10 | D |
| 806704 | 22 | 7F | 1100 | 4-4-4 | 10 | D |
| 806705 | 22 | 7F | 1100 | 2-5-2 | 10 | F |
| 806706 | 22 | 7F | 1100 | 3-3-3 | 10 | F |
| 806707 | 22 | 7F | 1100 | 2-6-2 | 10 | F |
| 806708 | 22 | 7F | 1100 | 4-4-4 | 10 | F |
| 806709 | 32 | 7F | 1100 | 1-1-1-1-1 | 10 | D |
| 806710 | 32 | 7F | 1100 | 2-2-2-2-2 | 10 | D |
| 806711 | 32 | 7F | 1100 | 1-1-1-1-1 | 10 | F |
| 806712 | 32 | 7F | 1100 | 2-2-2-2-2 | 10 | F |
| REF | Match catheter type | Catheter Diameter |
|---|---|---|
| 806001 | 22-pole catheter | 300 |
| 806002 | 32-pole catheter | 300 |
