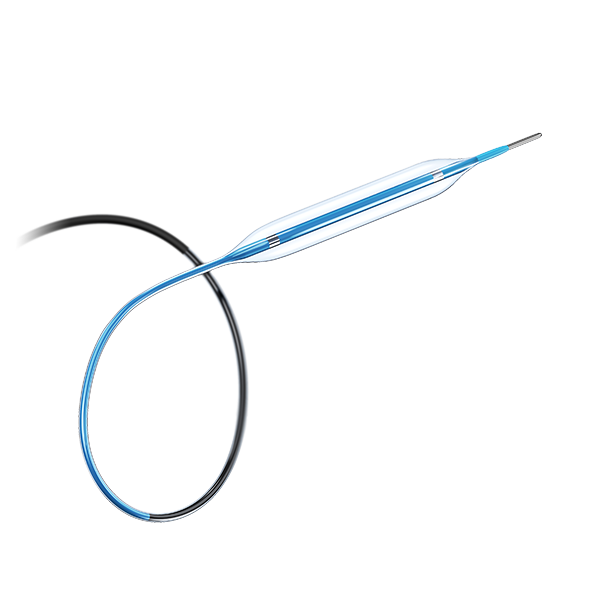

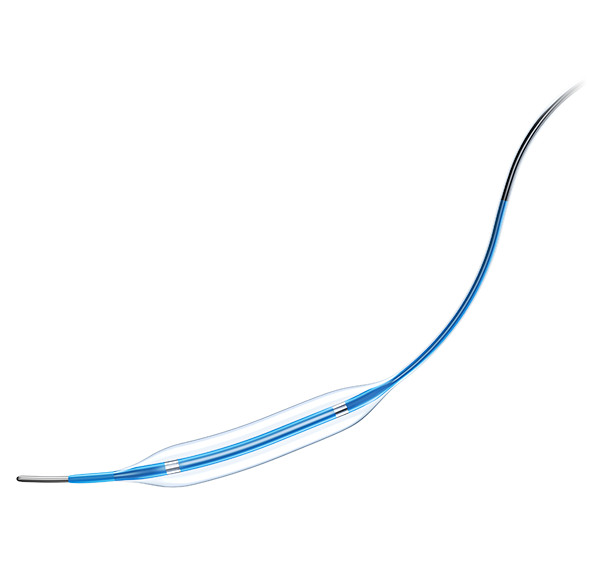

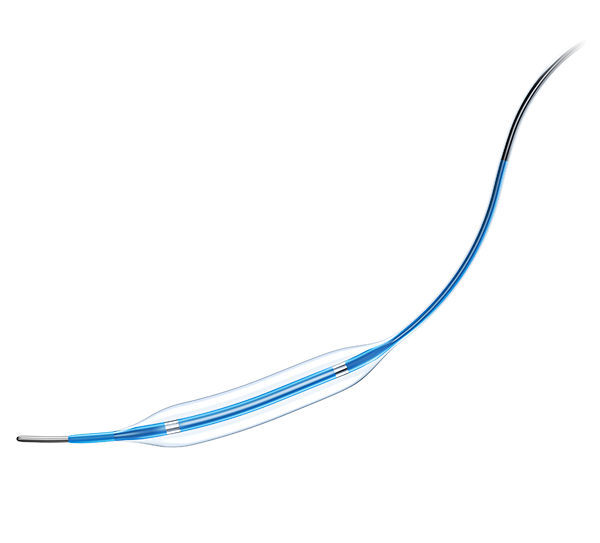

With its ultra-low entry profile, superior pushability and crossability, powered by special coating technique and flexible proximal shaft construction, CONQUEROR™ semi-compliant rapid exchange balloon catheter is designed to cross the most challenging lesions and improve the work efficiency.
- Tip profile down to 0.016” provides better crossability through most challenging lesions.
- Smooth tapered transition between the tip and guidewire to enhance the crossability.
- Special balloon folding technique reduces balloon refolding profile to ensures a safe retrieval, even after multiple inflations.
- Combination of catheter distal flexibility and the stiffness of the proximal shaft enables superior deliverability crossing through complex lesions.
- A much softer balloon material provide more compliance to track the complex artery anatomy.
- 1.0mm balloon, special design for CTO lesions, severe stenosis and other complex lesions. It greatly improves the success rate of the PCI, simplifies the procedure process while reducing the duration of PCI procedure.
Balloon Diameter | Balloon Length (mm) | Note | |||||
---|---|---|---|---|---|---|---|
6 | 9 | 12 | 15 | 20 | 30 | ||
1.00 | 50100060 | 50100090 | - | - | - | - | Shaft Length: 140cm Compatible Guidewire: 0.014” |
1.25 | 50125060 | 50125090 | 50125120 | 50125150 | - | - | |
1.50 | 50150060 | 50150090 | 50150120 | 50150150 | 50150200 | - | |
2.00 | 50200060 | 50200090 | 50200120 | 50200150 | 50200200 | 50200300 | |
2.25 | 50225060 | 50225090 | 50225120 | 50225150 | 50225200 | 50225300 | |
2.50 | 50250060 | 50250090 | 50250120 | 50250150 | 50250200 | 50250300 | |
2.75 | 50275060 | 50275090 | 50275120 | 50275150 | 50275200 | 50275300 | |
3.00 | - | - | 50300120 | 50300150 | 50300200 | 50300300 | |
3.25 | - | - | 50325120 | 50325150 | 50325200 | 50325300 | |
3.50 | - | - | 50350120 | 50350150 | 50350200 | 50350300 | |
3.75 | - | - | 50375120 | 50375150 | 50375200 | 50375300 | |
4.00 | - | - | 50400120 | 50400150 | 50400200 | 50400300 | |
4.50 | - | - | 50450120 | 50450150 | 50450200 | 50450300 | |
5.00 | - | - | 50500120 | 50500150 | 50500200 | 50500300 |
