SealingPro™ Y Connector is designed for effortless operation and delivers superior hemostasis. It's your reliable choice for seamless device connections during interventional procedures.
- Hemostatic Valve: push to open, release to close; - Locking Valve: rotate to lock guidewire in place

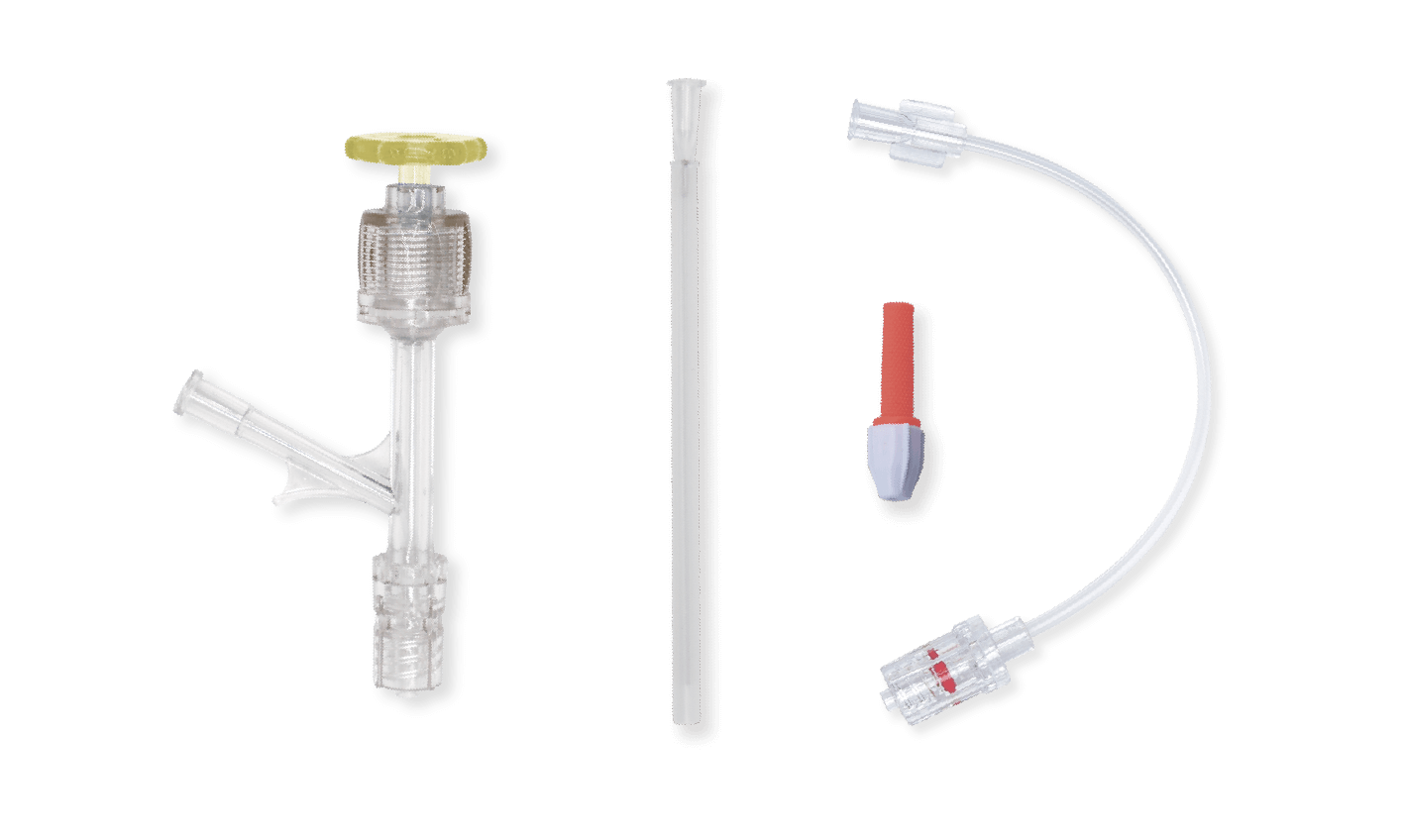

| REF | Y Connector | Inserter | Torque Device | Extension Tube | Type | ||
|---|---|---|---|---|---|---|---|
| Length (mm) | I.D. (mm) | Quantity | |||||

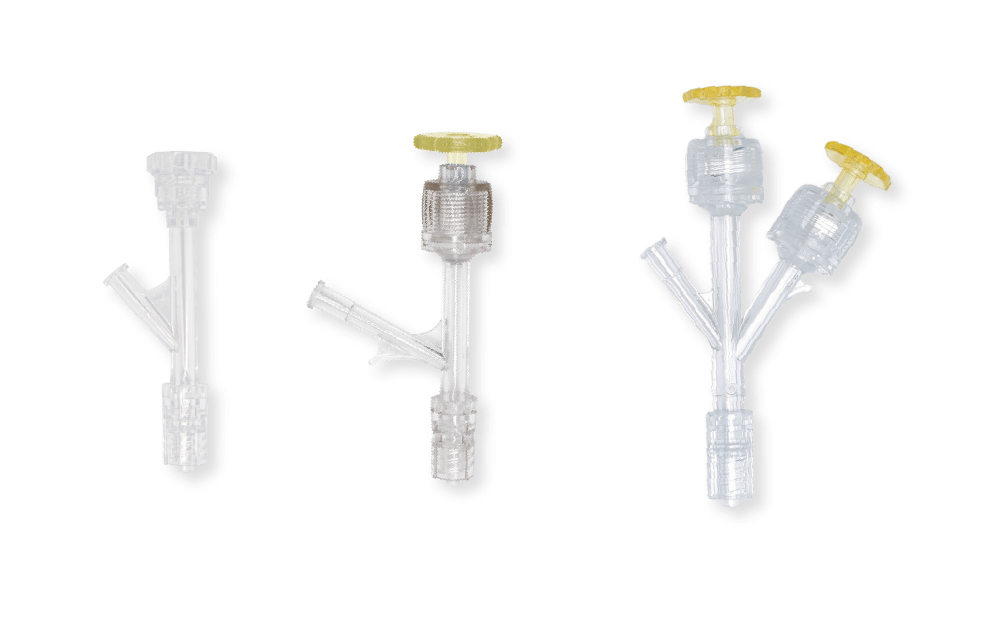

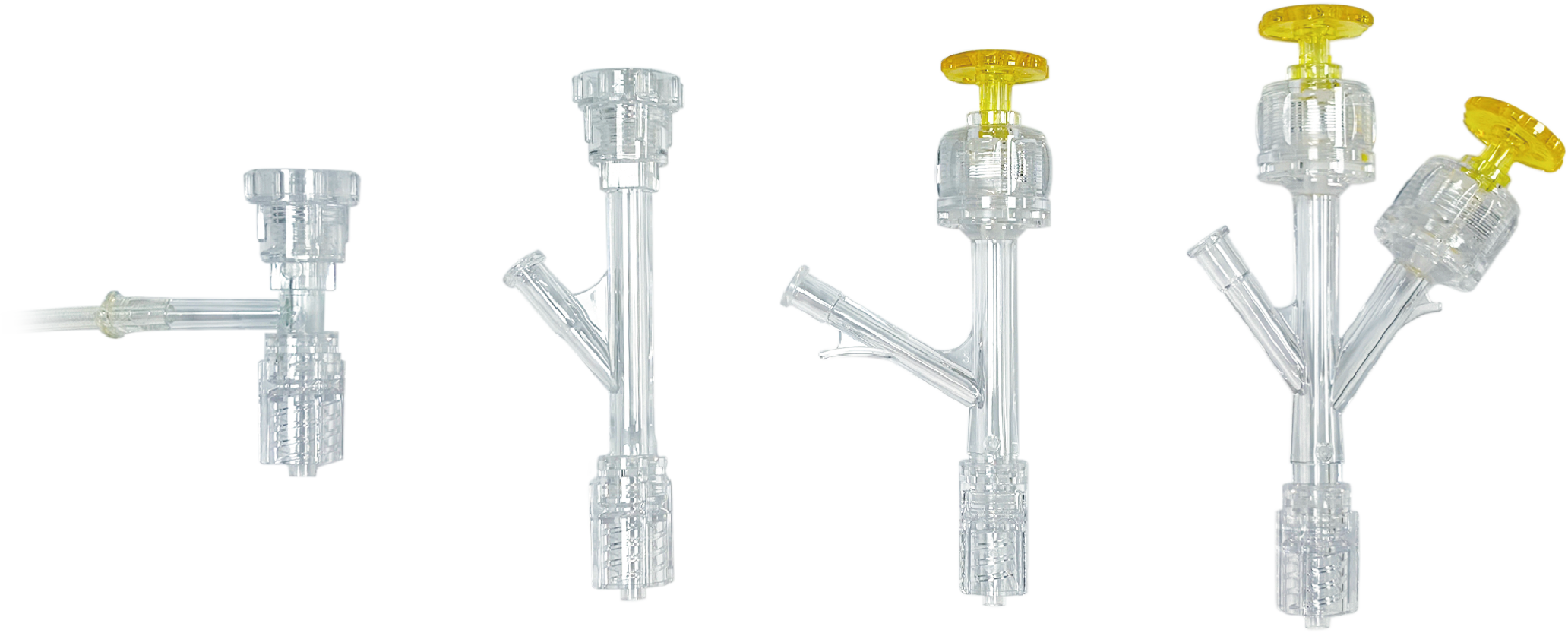

| 18821100 | 82 | 3.4(10F) | 1 | • | • | Single Valve-Type I | |
| 18821200 | 82 | 3.4(10F) | 1 | • | • | • | Single Valve-Type I |
| 18891100 | 89 | 3.4(10F) | 1 | • | • | Double Valve-Type II | |
| 18891200 | 89 | 3.4(10F) | 1 | • | • | • | Double Valve-Type II |
| 18992100 | 99 | 3.4(10F) | 1 | • | • | Double Valve-Type IV (2-lumen) | |
| 18992200 | 99 | 3.4(10F) | 1 | • | • | • | Double Valve-Type IV (2-lumen) |
| 18471100 | 47 | 3.4(10F) | 1 | • | • | Integrated | Single Valve Short Type-I |
* 500 psi enables high pressure injection
