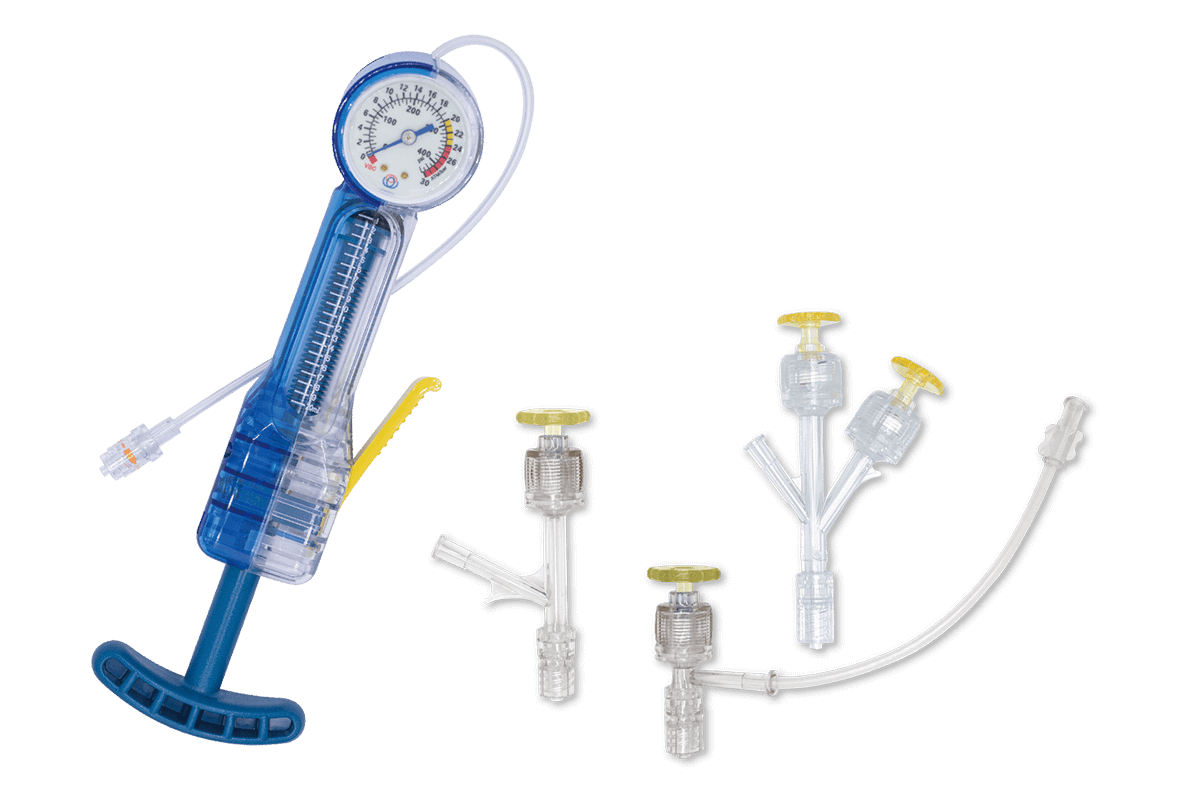

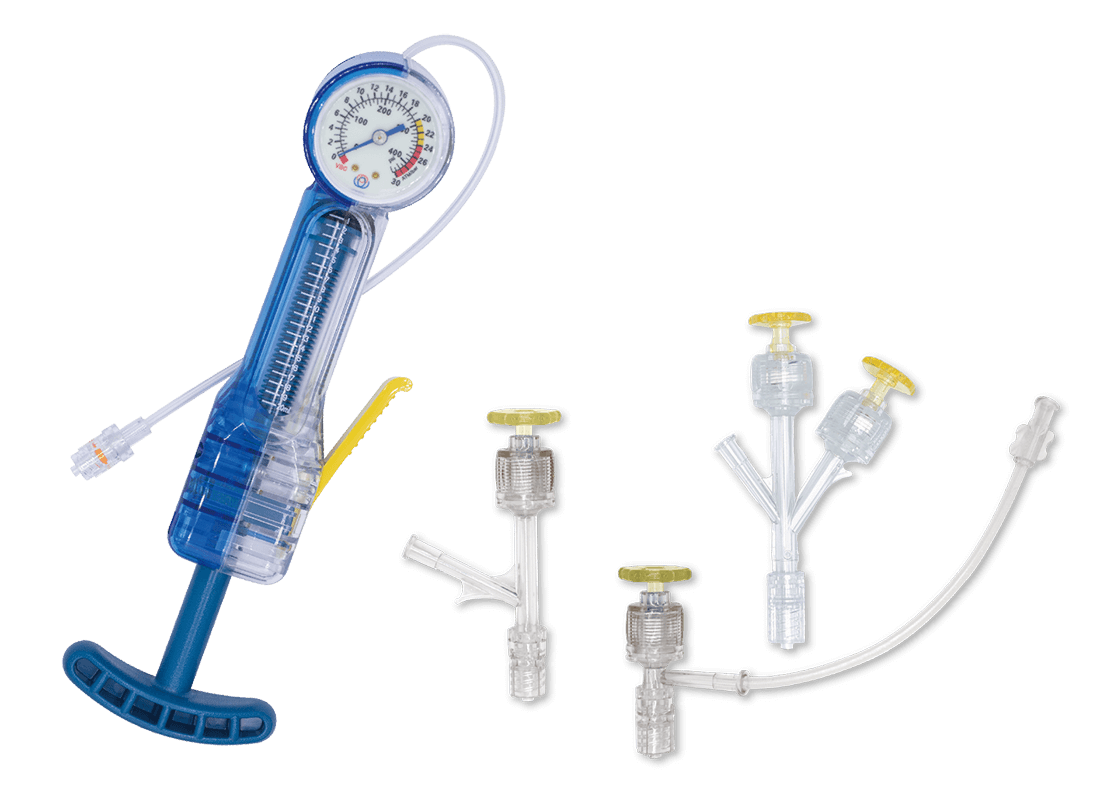

Designed for precision and ease of use, Precombo™ combines a reliable inflation device and seven types of Y-connectors, offering facilitation and efficiency for PCI, Peripheral, Oncology, and Neural Intervention.
- Ergonomic handle design for quick and easy inflation control
- Glow-in-the-dark pressure gauge for viewing in low-light environments
- 20ml syringe and 30atm max pressure fit all your dilatation procedures
- Two valve design – Pushable valve to open, rotatable valve to adjust lumen
- Nominal ID: 10F
- Dual Lumen Y connector (Type IV)
- High-pressure endurance: Maximum 500psi
| REF | Y Connector | Attached Extension Tube | Inflation Device | |||||||
| Length (mm) | I.D. (mm) | Configuration | Inserter | Torque Device | Integrated extention tube | Effective Length (mm) | O.D. (mm) | I.D. (mm) | ||
| 22782104 | 82 | 3.4(10F) | Type I | • | - | 300 | 3.2 | 1.6 | 20 mL/30 atm (with 3-way stopcock) | |
| 22789204 | 89 | 3.4(10F) | Type II | • | - | 300 | 3.2 | 1.6 | ||
| 22799404 | 99 | 3.4(10F) | Type III | • | - | 300 | 3.2 | 1.6 | ||
| 22799504 | 99 | 3.4(10F) | Type IV 2-lumen | • | - | 300 | 3.2 | 1.6 | ||
| 22747600 | 47 | 3.4(10F) | Short Type I | • | Y | - | - | - | ||
| 22760800 | 60 | 3.4(10F) | Short Type III | • | Y | - | - | - | ||
