It is available for multi-electrode mapping and ablation, assists FAM (Fast Anatomical Mapping), and is combined with the HT Viewer™ Navigation System and Pulsed Field Ablation Generator.
- Multi-electrode discharges to achieve contiguous transmural lesion.
- Optional electrode ablation to reduce ineffective discharges in the blood pool for safety.

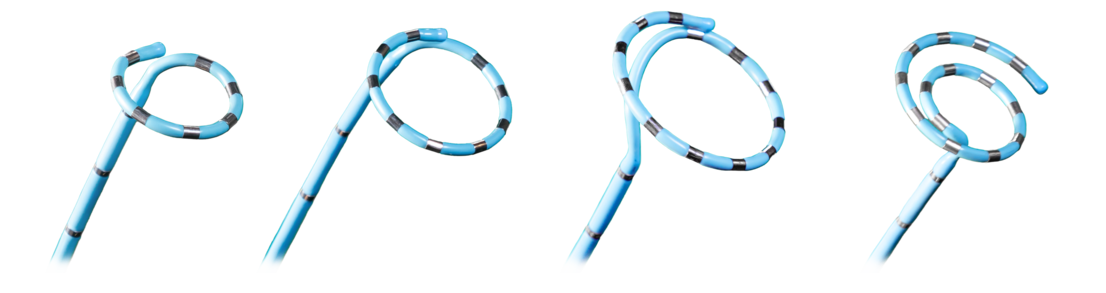

- Available in different specifications with single/double circular tips for a range of clinical needs.
| REF | Ring Electrode Number | Catheter Diameter (mm) | Length (mm) | Ring Electrode Width (mm) | Ring Electrode Diameter (mm) | Ring Electrode Spacing (mm) |
|---|---|---|---|---|---|---|
| 501105 | 7 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501107 | 8 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501109 | 9 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501112 | 10 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501116 | 12 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501201 | 14 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501204 | 18 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
| 501206 | 22 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 |
